Strata

Strata is a notebook your coding agent can drive, and everything it computes stays.

Coding agents explore by writing throwaway scripts: python -c, files in /tmp, invisible and gone by the next session. Point one at Strata and the work lands in a notebook instead. Every result is cached by what produced it, every cell records who wrote it, and the whole thing is open in your browser while the agent works. Come back tomorrow and it is all still there, already computed.

That holds because of what a cell is. Each one is keyed by its source, its inputs and its environment, so the expensive step an agent ran ten turns ago is a cache hit now, and the same inputs give the same result a year later on another machine. Change one cell and only the cells below it run again. Nothing is recomputed to prove a point.

It is a good notebook for a person, too. Ask a model a question in a prompt cell and the answer is cached like any other result. Send the slow cell to a GPU with one line. Read an S3 prefix as a local path. The notebook itself is plain .py files plus a manifest, so a commit is a readable diff rather than a wall of JSON.

Docs: bearing-research.github.io/strata

Point an agent at it

Install it as a one-command Claude Code plugin (needs the strata CLI on PATH; uv tool install "strata-notebook[mcp,tui]"):

/plugin marketplace add bearing-research/strata
/plugin install strata-scratchpad@strata

A coding agent drives the notebook in one terminal; strata-notebook-tui mirrors it live in another. Captured from a real run, not a mock-up.

Whether an agent reaches for it instead of a scratch script is measured rather than assumed. evals/agent_notebook/ drives the real on-ramp and grades the result: 9 transcript-backed tasks run in CI, and a scratchpad group probes whether an un-primed session uses the notebook at all. See Driving a notebook with a coding agent.

Highlights

For an agent

• a scratchpad that lasts: a Claude Code plugin points an agent at a cached notebook cell instead of a /tmp script, so the snippet it ran ten turns ago is still there
• any MCP client: a warm notebook session is exposed at /mcp, and you can watch the agent work in the browser or the terminal while it does
• built to be scripted: strata inspects, runs and authors a notebook with JSON output and stable exit codes, offline or against a live session
• one command to start: strata agent ./nb stands up the server, the session, the config and the viewer together
• you can tell who did what: every cell records whether a person or an agent wrote it

Why nothing runs twice

• results are keyed by what made them: a cell's source, its inputs and its environment decide its identity, so identical work is a cache hit and no result ever needs invalidating
• only what changed re-runs: edit one cell and Strata re-runs the cells below it and nothing else
• no wiring: Strata reads each cell to find what it uses and what it defines, so there are no decorators and no edges to maintain by hand
• readable in git: a notebook is plain .py files plus a TOML manifest, so a diff shows the code that changed
• the graph is visible: the dependency graph renders beside the cells, and double-clicking a node jumps to its source

Cell types

• prompt cells: LLM calls as DAG nodes, {{ variable }} interpolation from upstream, cached by template + inputs + model config
• SQL cells: named connections and bind-parameter templating, with drivers for DuckDB, SQLite, Postgres, Snowflake and BigQuery
• R cells: Python and R share one DAG, exchanging Arrow, so a pandas.DataFrame is a data.frame for the next cell
• loop cells: # @loop max_iter=N carry=state iterates with an explicit carry, each step its own artifact
• variant sweeps: run every variant of a group and hand the downstream cell a {name: value} dict, or fan out with # @per_variant so adding a variant only runs the new one
• widget cells: declarative controls that downstream cells consume as inputs; with Live on, dragging one recomputes what depends on it
• cell unit tests: a Tests panel runs real pytest against a cell's defs and upstream inputs, doubling as a health badge

Compute and data

• distributed: # @worker gpu-fly dispatches a cell to a remote box; bring your own compute
• worker pool (separate package, pip install strata-pool): machines (Fly, Docker or RunPod) start on demand, are held for a tenant, hand out GPUs per cell, and stop when the work does
• the same environment, elsewhere: a remote cell runs in the notebook's own locked environment rather than whatever the worker image holds
• the machine starts before the run: focusing a cell bound to a pooled worker, or starting Run All, asks the pool to bring up a machine while you are still reading the code
• remote cells over SSH: hand an agent an SSH target and it provisions a worker there, tunnels to it, and routes heavy cells over, cached like everything else
• workers behind NAT: strata-worker --connect dials out to a relay, so a machine with no open port serves cells
• lake-aware SQL: read a named catalog and the notebook's mounts in one query, pinned to the snapshot the cell's provenance records
• Iceberg as other engines write it: scans apply merge-on-read deletes and follow schema changes by field id, so tables Spark, Flink and DuckDB write read correctly, from SQL, REST, Glue, GCS and Azure catalogs
• every input recorded: # @fetch makes bytes from a URL an input, # @dataset makes a registry name one, both content-addressed
• mounts: # @mount data s3://bucket/prefix ro makes any S3, GCS or Azure prefix a local pathlib.Path
• isolated envs: every notebook gets its own uv-managed .venv/, locked and reproducible
• headless: strata run ./my-notebook for CI and scheduled execution, same DAG and same cache

Teams

• promote to the team: strata artifact promote copies a result and the chain behind it into the team's store, from the notebook, the CLI or inside a cell
• a colleague's run counts: a cell can be served from a teammate's earlier result: the expensive middle of a pipeline, not only what someone chose to name
• a figure gets a URL: publish an artifact and anyone with the link sees the plot, the code, and the environment of every step behind it, with no account and no install
• a notebook travels: export the whole state as one bundle and import it back, artifacts included
• share a session: presence, cell focus and soft locks, with every cell recording who wrote it
• safe to share (in service mode): cells run as their own OS user once you name one, notebook scopes are enforced on every notebook route under principal auth, and an MCP tool call runs as its caller
• host it for many people: in service mode every notebook route, the WebSocket and MCP stay within the caller's tenant, the server runs under a path behind your proxy, and the editor can be framed inside your own product
• a store that stays bounded: results nobody has used for a while are collected least recently used first, never anything named, pinned, published or still needed

Surfaces

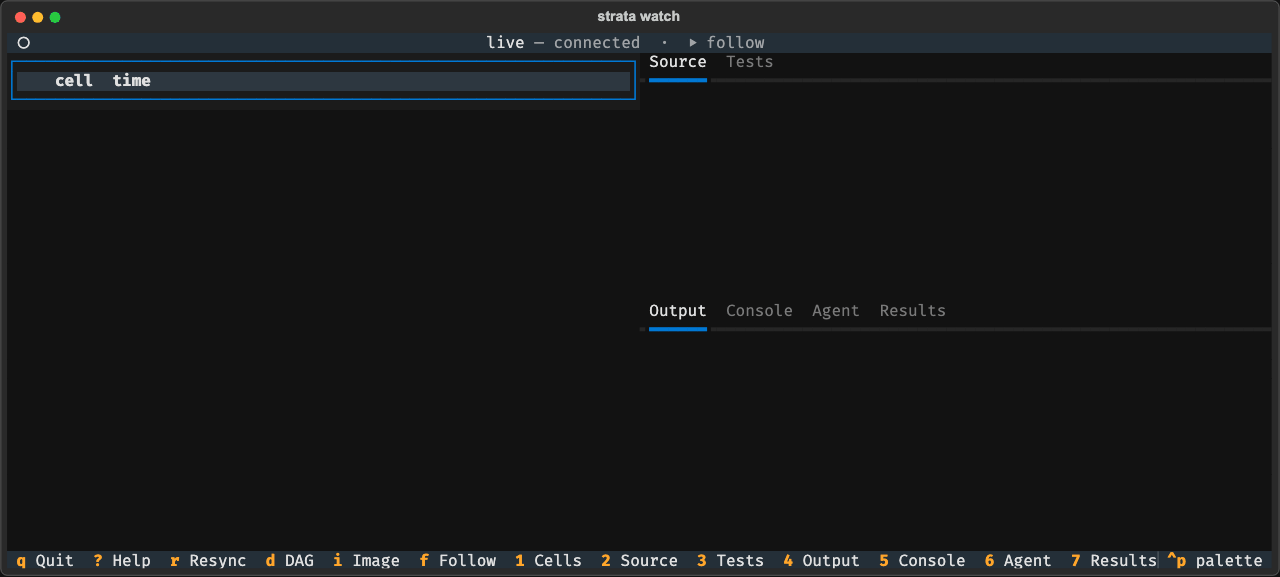

• terminal viewer: strata watch renders a running notebook live in the terminal, read-only, over SSH or beside your editor
• stop a run from anywhere: cancel a running cell from the browser, strata cell cancel, REST or MCP, and on Linux and macOS a cell stops when the server that started it does
• app view: open a notebook as a read-only app, embed it as an <iframe>, or export a self-contained snapshot
• data viewer: DataFrame outputs render in a grid you can page, sort, filter and search, backed by the full artifact rather than a preview
• also a library: pip install strata-client talks to the store from any pipeline or service, with no server install
• production: Iceberg-aware scans, trusted-proxy auth, multi-tenancy, and S3, GCS, Azure or local blob backends

Quick Start

Both paths below run in personal mode: single-user, writes enabled, no proxy auth. For multi-tenant or hosted deployments, see Deployment Modes.

# Docker. docker-compose.yml sets personal mode for you.
docker compose up -d --build
# Then open http://localhost:8765

# Or the prebuilt image (linux/amd64), published with each release.
docker run --rm -p 127.0.0.1:8765:8765 -v strata_state:/home/strata/.strata \
  ghcr.io/bearing-research/strata:0.10.0

# Or install via uv (recommended). Puts the CLI on PATH in a uv-managed
# tool env. `pip install` is not supported; see Requirements below.
# The mcp and tui extras are what `strata agent` and `strata watch` need.
uv tool install "strata-notebook[mcp,tui]"
strata-notebook
# Then open http://localhost:8765

For the full inventory of installed commands (strata-notebook, strata, strata-worker, python -m strata), see the Commands reference.

Source builds (git clone + uv sync) are documented in Installation.

Requirements

uv 0.8 or newer, and nothing else. uv fetches a matching Python for you.

Strata runs only inside a uv-managed environment. It checks for the uv = <version> marker uv writes to pyvenv.cfg, which uv tool install, uv add and uv run all produce and a hand-rolled python -m venv does not. The reason is that the notebook subsystem shells out to uv to manage per-notebook .venv/ directories; failing at startup with a clear message beats a confusing subprocess error later. Conda and pip-venv users install uv and run uv tool install strata-notebook, which builds its own env and leaves existing data and environments untouched.

Windows: uv tool install strata-notebook works directly.

Building Strata itself from a git clone also needs Node 26+ for the frontend. The PyPI wheel ships it prebuilt, so this applies only if you are modifying Strata. Source builds work on Windows via WSL2 or natively.

The Cache Advantage

Every notebook platform re-executes from scratch when you change one cell. Strata doesn't. The artifact store deduplicates by provenance hash. If the code and inputs haven't changed, the result is served instantly.

First run:     load data (10s) → clean (3s) → train (20s) → evaluate (1s)  = 34s
Change model:  load data (✓)   → clean (✓)  → train (20s) → evaluate (1s)  = 21s
Re-run:        load data (✓)   → clean (✓)  → train (✓)   → evaluate (✓)   = <1s

This is the architecture, not a layer on top of it. Every cell execution is a materialize(inputs, transform, environment) → artifact operation, and the cache is keyed on content rather than time, so it is correct by construction.

Even a leaf cell that only prints is cached: its console output is keyed by the same provenance hash, so an unchanged re-run replays the output instantly rather than executing again. That makes the notebook a good scratchpad - a coding agent's exploratory snippets stop recomputing. Cells that must always run (a side effect, a live API call, a fresh random draw) opt out with # @nocache.

Distributed Execution

Each cell can declare which worker it runs on via a single annotation:

# @worker my-gpu
embeddings = model.encode(abstracts, batch_size=256)

You define workers in notebook.toml. Each one points at an HTTP endpoint that implements the Strata executor protocol. A worker can be a GPU box on RunPod, a DataFusion cluster on Fly, a beefy EC2 instance, or anything else that speaks HTTP. The notebook routes the cell to the declared worker at execution time, and the UI shows a live dispatching → my-gpu badge while it runs.

No deployment code, no infrastructure glue. Bring your own compute, one annotation per cell.

Source Annotations

Every piece of per-cell metadata is a comment directive in the cell's source. The source is the single canonical place for cell config: annotations always win over any stored defaults.

# @name Extract embeddings
# @worker gpu-fly
# @timeout 600
# @env MODEL_PATH=/models/bge-large
# @mount dataset s3://corpus/2024-q4 ro
embeddings = model.encode(dataset / "abstracts.jsonl")

Diagnostics fire on open, reload, and after an edit settles, for example worker_unknown, mount_uri_unsupported, mount_shadows_notebook, timeout_not_numeric, env_malformed. They surface as a pill in the cell header and log structured warnings for headless runs.

Mounts

Mounts bind a remote URI to a local path inside the cell. Supported schemes: file://, s3://, gs://, az://. Credentials flow through fsspec options: set anon = true for public buckets, or drop it to use the standard credential chain.

[[mounts]]
name = "taxi_zones"
uri = "s3://nyc-tlc/misc"
mode = "ro"
options = { anon = true }

Inside the cell, taxi_zones is a pathlib.Path. Strata mirrors the remote prefix to a local cache before the cell runs, and reuses that copy while the remote fingerprint is unchanged. The mirror runs in Strata's own environment, so install the extra for the scheme there: s3, gcs or azure (for example uv tool install "strata-notebook[s3]").

Examples

Example	What it shows
pandas_basics	Linear DataFrame chain, caching, staleness propagation, per-cell unit tests
iris_classification	End-to-end ML, DAG branching, mixed output types
titanic_ml	Feature engineering + model comparison
s3_mount	Reading a public S3 bucket via a mount
arxiv_classifier	Distributed execution via @worker + Modal GPU + Fly cluster
markdown_showcase	Markdown cells, dynamic Markdown(...) outputs, security cases
library_cells	Cross-cell library code: pure module cells, mixed runtime+library cells, the limits
news_alpha_trader	Multi-stage trading pipeline with prompt cells and structured LLM outputs
review_triage	Prompt cell with # @output_schema - structured, schema-validated LLM output
r_mtcars_analysis	Pure-R notebook - mtcars regression with inline ggplot2 / base-graphics plots
r_lm_vs_sklearn	Cross-language R + Python - R lm() vs scikit-learn over shared Arrow data
sql_orders_report	SQL cells over a local SQLite warehouse, mixing SQL / Python / markdown
widget_playground	Widget cell (control panel) driving a downstream cell, with # @live reactivity
model_variants	Variant groups - alternative training cells sharing one DAG slot (switch mode)
model_variants_sweep	Variant sweep mode - run every variant and compare them in one downstream cell
loop_hill_climb	# @loop / # @loop_until iteration with carry and per-iteration artifacts
data_viewer	Interactive data viewer - page / sort / filter / search the full cached artifact
agent_demo	A coding agent builds the notebook live; only the eval re-runs when the model caches

What is still moving

Materialization, the artifact store, the DAG, caching and headless run are settled and covered by tests. Three surfaces are not:

• Prompt-cell API. Streaming, conversation memory and structured-output validation will change.
• SQL cloud drivers. DuckDB, SQLite and PostgreSQL run in CI. BigQuery and Snowflake ship without integration coverage. MotherDuck and MySQL are not implemented.
• On-disk formats. notebook.toml, .strata/runtime.json and the artifact cache layout may change between minor versions. Depend on the Python API, not the file shapes.

---

Library usage

Strata's HTTP API exposes the materialization layer directly, driveable from Python via StrataClient. Useful for direct table scans, custom transforms, and headless workflows; the notebook executor is a separate pipeline that writes to the same artifact store. The client talks to a running Strata server, so this workflow has two steps: start the server, then call it from your code.

# 1. Install + start the server (in a uv-managed env).
uv tool install strata-notebook
strata-notebook

# 2. In your own project, install the slim client - a separate package
#    (httpx + pyarrow only, no server deps, plain pip is fine) - and
#    point it at the running server:
pip install strata-client

from strata_client import StrataClient

client = StrataClient(base_url="http://localhost:8765")
artifact = client.materialize(
    inputs=["file:///warehouse#db.events"],
    transform={"executor": "scan@v1", "params": {"columns": ["id", "value"]}},
)
table = client.fetch(artifact.uri)  # Arrow table, cached by provenance

A result never goes stale, but an unnamed one is a cache entry: the server keeps it while it is used, and its retention sweep (in personal mode, 30 idle days or a 20 GiB store cap) may collect it later, after which the same call computes it again. Name it (name= on materialize) or pin it to keep it. See retention.

The server provides: provenance-based deduplication, immutable versioned artifacts, lineage tracking, Iceberg table scanning with row-group caching, pluggable blob storage (local/S3/GCS/Azure), multi-tenancy, trusted-proxy auth, and an executor protocol for external compute.

Library docs →

---

Architecture

┌─────────────────────────────────────────────┐
│ Notebook UI (Vue.js + WebSocket)            │
│ cells, DAG view, workers                    │
└─────────────────────────────────────────────┘
                    │
                    ▼
┌─────────────────────────────────────────────┐
│ Notebook Backend (FastAPI)                  │
│ session, cascade, executor, prompt cells    │
└─────────────────────────────────────────────┘
                    │
                    ▼
┌─────────────────────────────────────────────┐
│ Strata Core                                 │
│ materialize, artifacts, lineage, dedupe     │
└─────────────────────────────────────────────┘

The notebook is an orchestration layer over Core. It decides what to run next (cascade planning, staleness tracking). The cell harness is an executor. Core decides whether results already exist and persists them.

Development

uv sync --all-extras                   # Install deps (matches CI)
uv run pytest                          # Run all tests
uv run pre-commit run --all-files      # Lint + format
cd frontend && npm run dev             # Frontend dev server (hot reload)

License

Apache 2.0
